The metal roofing panel stands out above the rest.

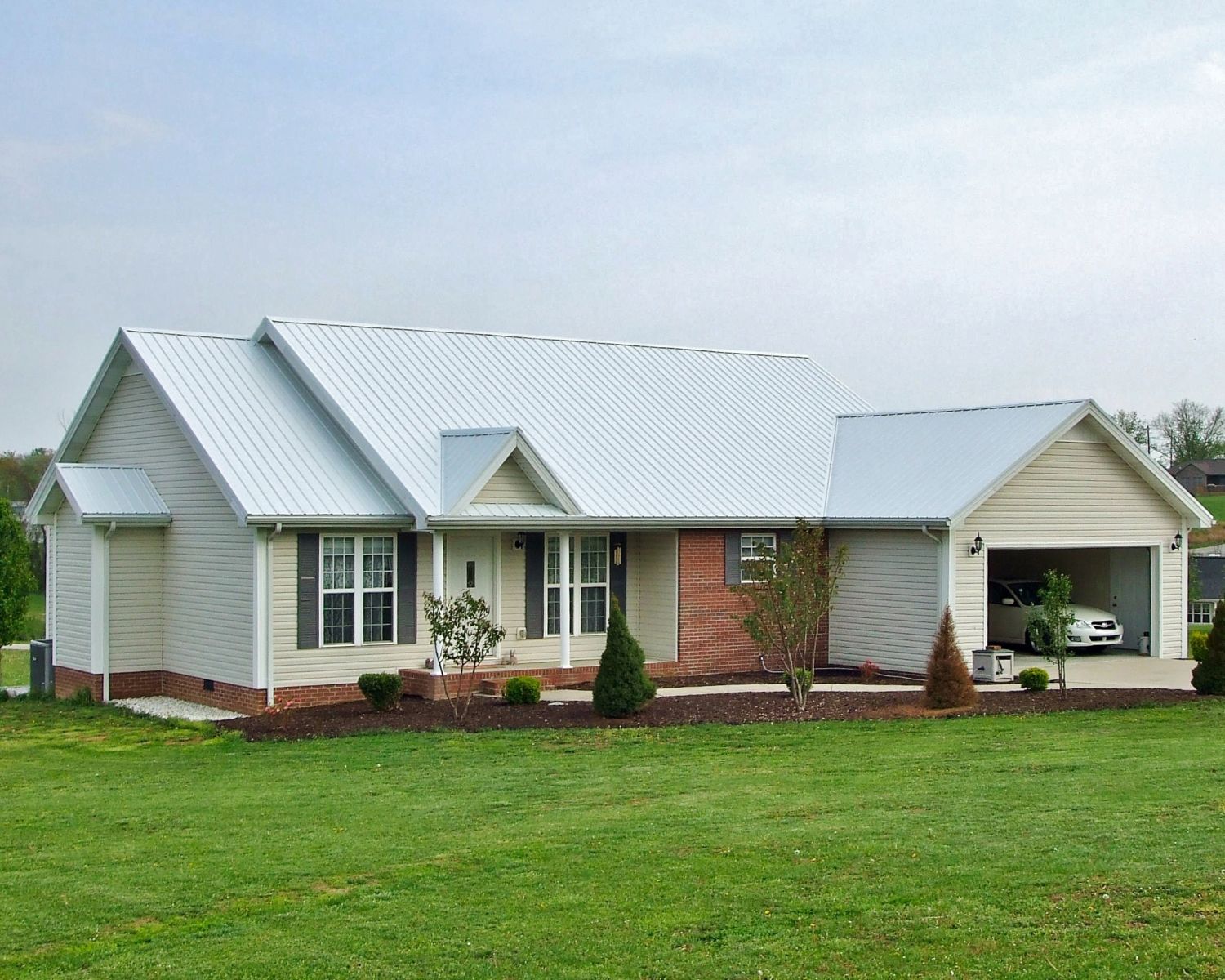

As the top-choice in metal roofing and siding applications, Premium Rib panels are manufactured with you in mind. It's versatile and durable design allows it to be applied to various residential, commercial, agricultural, and equestrian roofing projects. Premium Rib is an exposed fastened 29 gauge product offering 36 coverage. Available in a wide range of attractive Sherwin-Williams colors, Premium Rib carries a 40-year paint warranty that guarantees beauty for decades.

• Coverage: Available in a 3/4 rib height with a 36 coverage width and 9 bell top spacing.
• Slope: Minimum recommended roof slope is 3:12.
• Length: Minimum cut length is 3'-0. Maximum recommended cut length is 45'-0. Longer panels need special consideration for erection, packaging, and shipping.
• Fasteners: Exposed fastened, low-profile product.
• Gauge: Available in 29 and 26 gauge in both Galvalume and Sherwin-Williams colors.
• Substructure: Designed for use over a solid substrate or open structural framing. Uniform and properly aligned substructures are necessary to avoid panel distortion.
• Warranties: 40-year Sherwin-Williams limited warranty, and a 25-year Galvalume warranty

The metal roofing panel stands out above the rest.

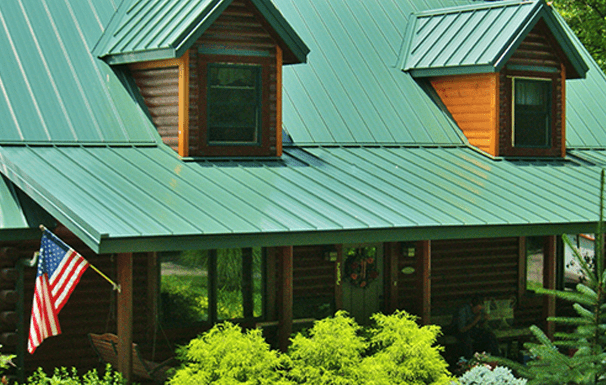

Popular in upscale residential and architectural roofing applications, Standing Seam roofs are manufactured to be durable and attractive. They have the highest wind, fire, and impact resistance of any other roofing option. Both are snap-locking, concealed fastened products that offer 16 coverage. The difference between the two is subtle, but these panels are anything but.

• Coverage: Available in a 1-1/2 rib height with a 16 coverage width. Can be installed horizontally or vertically.
• Slope: Minimum recommended roof slope is 3:12.
• Length: Minimum cut length is 1'-0. Maximum recommended cut length is 53'-0. Longer panels need special consideration for erection, packaging, and shipping.
• Fasteners: Quickseam & Quickseam Plus are concealed fastened, snap-locking products.
• Gauge: Available in 26 and 24 gauge in both Galvalume and Sherwin-Williams colors.
• Substructure: Designed for use over a solid substrate. Uniform and properly aligned substructures are necessary to avoid panel distortion.
• Warranties: 40-year Sherwin-Williams limited warranty, and a 25-year Galvalume warranty

The metal roofing panel stands out above the rest.

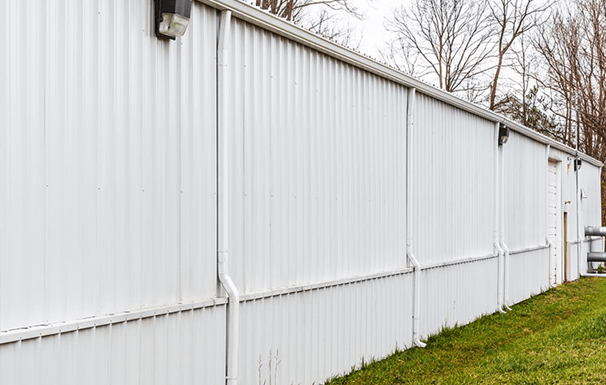

Ideal for low-profile roofs, Hi-Rib roofing has all your projects covered. From residential, commercial, and agricultural roofing applications, Hi-Rib metal roofing is manufactured with you in mind. Like a 26 gauge product with 36 coverage and a 39 formed width, it can be installed in a horizontal or vertical orientation. Hi-Rib is an exposed fastened product that uses fewer fasteners, allowing for quick installation and added affordability. Available in a wide range of attractive Sherwin-Williams colors.

• Coverage: Available in a 1-1/4 rib height with a 36 coverage and 39 formed width (intermediate ribs for added strength). Can be installed horizontally or vertically.
• Slope: Minimum recommended slope is 1/2:12.
• Length: Minimum cut length is 3'-0. Maximum is 53'-0. Longer panels need special consideration for erection, packaging, and shipping.
• Fasteners: Exposed fastened.
• Gauge: Available in 26 gauge in Galvalume, Sherwin-Williams colors., and Kynar finishes.
• Substructure: Designed for use over a solid substrate (Painted Galvalume and Mill Finished Galvalume Plus substrate) or open structural framing. Uniform and properly aligned substructures are necessary to avoid panel distortion.
• Warranties: 40-year Sherwin-Williams limited warranty, and a 25-year Galvalume warranty

Simple, yet enduring metal roofing panels that will make your neighbors jealous.

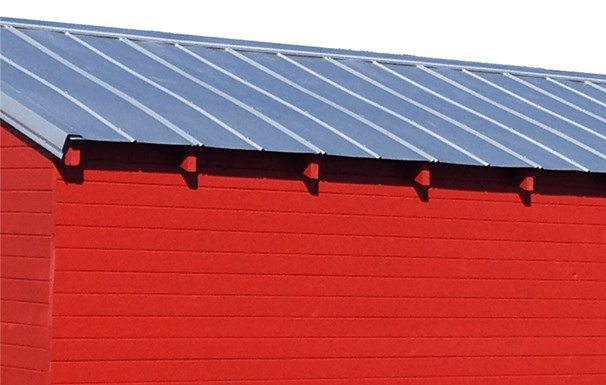

5V metal roofing panels have long been the top choice of many for agricultural roofing applications. However, its simplistic beauty and durable design allows it to be applied to a wide variety of residential and commercial projects. 5V is an exposed fastened, galvanized metal roofing product, with 24 coverage and 3/8 high ribs. Available in painted Galvalume AZ-50 and mill finished Galvalume Plus AZ-50, 5V carries a 25-year warranty that guarantees beauty for decades.

• Coverage: Available in a 3/8 rib height with a 24 coverage width and 26 formed width. Can be installed horizontally or vertically.
• Slope: Minimum recommended roof slope is 3:12.
• Length: Minimum recommended cut length is 1'-0. Maximum is 30'-0. Longer panels need special consideration for erection, packaging, and shipping.
• Fasteners: Exposed fastened product.
• Gauge: Available in 29 and 26 gauge in Galvalume.
• Substructure: Designed for use over a solid substrate. Uniform and properly aligned substructures are necessary to avoid panel distortion.
• Warranties: 25-year Galvalume warranty

The versatility of these corrugated metal panels makes them a preferred choice for roofing projects.

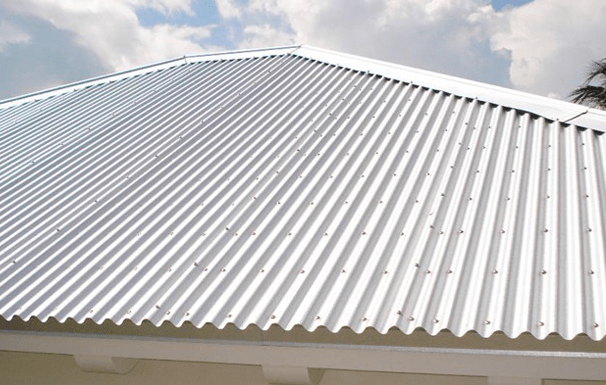

As the most recognized type of metal roofing and siding, our Corrugated metal roofing panels are popular for agricultural and DIY projects but are great for any project. Built for durability and value, Corrugated panels are arguably the most versatile metal panel. Corrugated metal roofing is an exposed fastened product offering 24" coverage. Available in a Galvalume substrate, our Corrugated panels carry a 25-year warranty that guarantees beauty for decades.

• Coverage: Available in a 1/4 rib height with a 24 coverage and 1-1/4" corrugated widths.
• Slope: Minimum recommended roof slope is 3:12.
• Length: Minimum recommended cut length is 1'-0. Maximum is 30'-0. Longer panels need special consideration for erection, packaging, and shipping.
• Fasteners: Exposed fastened product.
• Gauge: Available in 29 and 26 gauge in Galvalume.
• Substructure: Designed for use over a solid substrate or open structural framing at 24 O.C. uniform and properly aligned substructures are necessary to avoid panel distortion.
• Warranties: 25-year Galvalume warranty

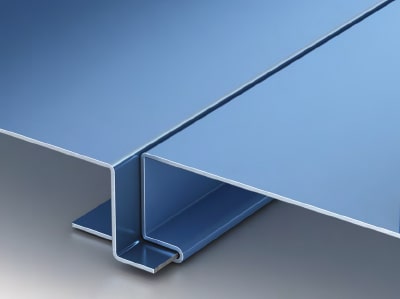

ToughLok 100FW Flush Wall and Soffit panel is a pleasing mixture of subtle elegance with modern sophistication. The smooth, uniform appearance is ideally suited for a wide range of applications including fascias, walls, equipment screens, and soffits. ToughLok 100FW is a very flexible panel design and works well for both new construction and retro-fit applications. The concealed male and female connection achieves a superior finished fit. Stiffener beads can also be used to safeguard the flush look further.

• Sizes: Galvalume - 22ga, 24ga, and 26ga.
• Finishes: Available in a variety of coatings and colors by Sherwin-Williams.
• Options: Factory made to exact lengths. Perforated/Non-Perforated - 12"/3" relief pattern (plus a variety of additional relief patterns)
• Installation: Can be installed over open frame steel purlins, steel decking, steel decking with polyiso or plywood decking.
• Brochures & Warranties: For more information download the 25-year Galvalume Warranty or the Toughlok 100FW Brochure

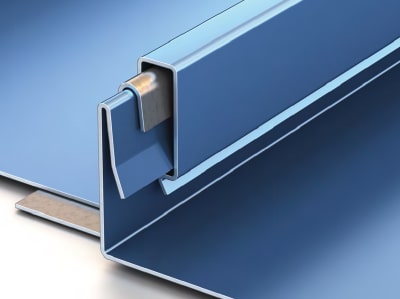

ToughLok 175 Snap Lock is a snap-together standing seam roof system with a 1-3/4 tall vertical rib. Its continuous interlocking engineered design allows thermal movement and requires no mechanical seaming for weathertight integrity. ToughLok 175SN is distinctive for its broad width seam and impressive structural capabilities. This popular panel has a concealed fastener and clip enabling quick and simple installation while withstanding extremely high design pressures including open purlin roof systems.

• Sizes: Galvalume - 22ga, 24ga, and 26ga.
• Finishes: Available in a variety of coatings and colors by Sherwin-Williams.
• Options: Factory made to exact lengths. Perforated/Non-Perforated - 12"/3" relief pattern (plus a variety of additional relief patterns)
• Installation: Can be installed over open frame steel purlins, steel decking, steel decking with polyiso or plywood decking with 2:12 roof pitch.
• Brochures & Warranties: For more information download the 25-year Galvalume warranty and the 175SN Brochure

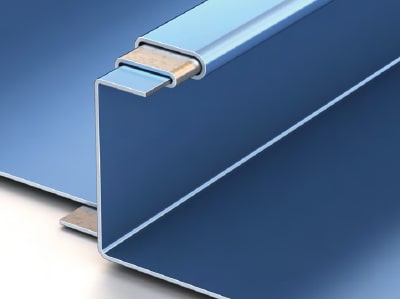

ToughLok 200 Single Lock and 200 Double Lock is a 2 mechanically seamed structural metal roof system that makes it an ideal choice for low to steep slope applications. ToughLok 200SL/DL is a versatile, performance-engineered solution that can handle heavy-duty commercial and industrial projects and provides very high wind uplift resistance and structural integrity. The panels are secured with concealed clips, and the ribs are locked together reducing panel stress from changes in temperature,

• Sizes: Galvalume - 22ga, 24ga, and 26ga.
• Finishes: Available in a variety of coatings and colors by Sherwin-Williams.
• Options: Factory made to exact lengths. Panel Ribs, striations, beads
• Installation: Can be installed over open frame steel purlins, steel decking, steel decking with polyiso or plywood decking with 1/2:12 roof pitch.
• Brochures & Warranties: For more information download the 25-year Galvalume warranty and the 200SL/DL Brochure
